Embedded & FPGA PCB Design: From Architecture to Reliable Bring-Up

Modern embedded platforms are expected to process more data, connect through faster interfaces, and fit into smaller mechanical envelopes. That combination makes the printed circuit board far more than a carrier for components. In an Embedded & FPGA PCB, the board becomes part of the electrical system: its stackup, power distribution, return paths, package escape strategy, and test access all influence whether the product starts reliably and performs with adequate margin.

The most effective design process therefore begins before schematic capture and continues beyond layout. Architecture, component selection, PCB fabrication limits, assembly constraints, signal integrity, power integrity, and bring-up planning must be treated as one coordinated engineering problem.

This guide explains the decisions that matter most when developing processor- and FPGA-based hardware, with a practical focus on reducing technical risk and creating production-ready data.

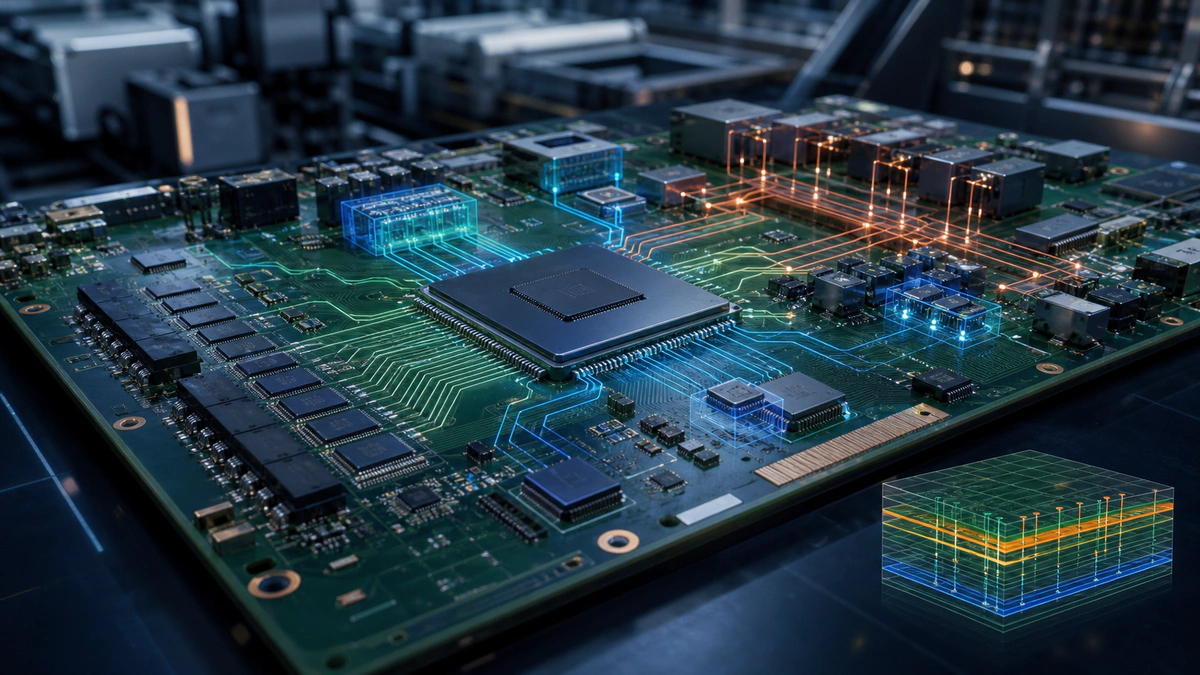

A successful Embedded & FPGA PCB coordinates device architecture, memory, power, high-speed routing, stackup, and manufacturing constraints.

Why Embedded and FPGA Boards Are Difficult to Get Right

An FPGA or high-performance processor may require several voltage rails, multiple reference clocks, boot memory, configuration control, high-speed external interfaces, and hundreds or thousands of package connections. Dense BGAs limit escape options, while DDR, PCIe, Ethernet, USB, MIPI, LVDS, and SerDes links impose topology and impedance requirements.

These concerns interact. A package selection affects fan-out density. Fan-out affects layer count and via structure. The stackup controls trace geometry and return paths. Power rail placement influences decoupling and plane transitions. Mechanical connector locations shape the routing channels available to high-speed interfaces.

Treating each item separately often produces late-stage compromises. A better approach establishes the electrical and physical architecture together, then verifies the design at defined milestones.

1. Define the System Architecture Before the Schematic

Start with a functional block diagram that shows the processor or FPGA, memory, clocks, power rails, boot and configuration devices, communication interfaces, debug access, and external connectors. For every connection, record its voltage domain, direction, approximate bandwidth, topology, and any timing or impedance constraints.

The architecture review should answer several practical questions:

• Which device owns system boot, reset, and configuration?
• How will power rails start, stop, and report faults?
• Which clocks are required, and where will they be generated and distributed?
• What memory capacity, bus width, and speed are needed?
• Which I/O banks must support particular signaling standards?
• How will firmware and programmable logic be loaded during development and production?
• Which signals and rails must be accessible during board bring-up?

For an FPGA, bank assignment should be planned early. Moving a high-speed interface between banks late in the project can change reference voltages, clock access, pin compatibility, escape routing, and layer demand. Confirm package pinout, bank rules, transceiver resources, configuration pins, and vendor migration options before locking the schematic.

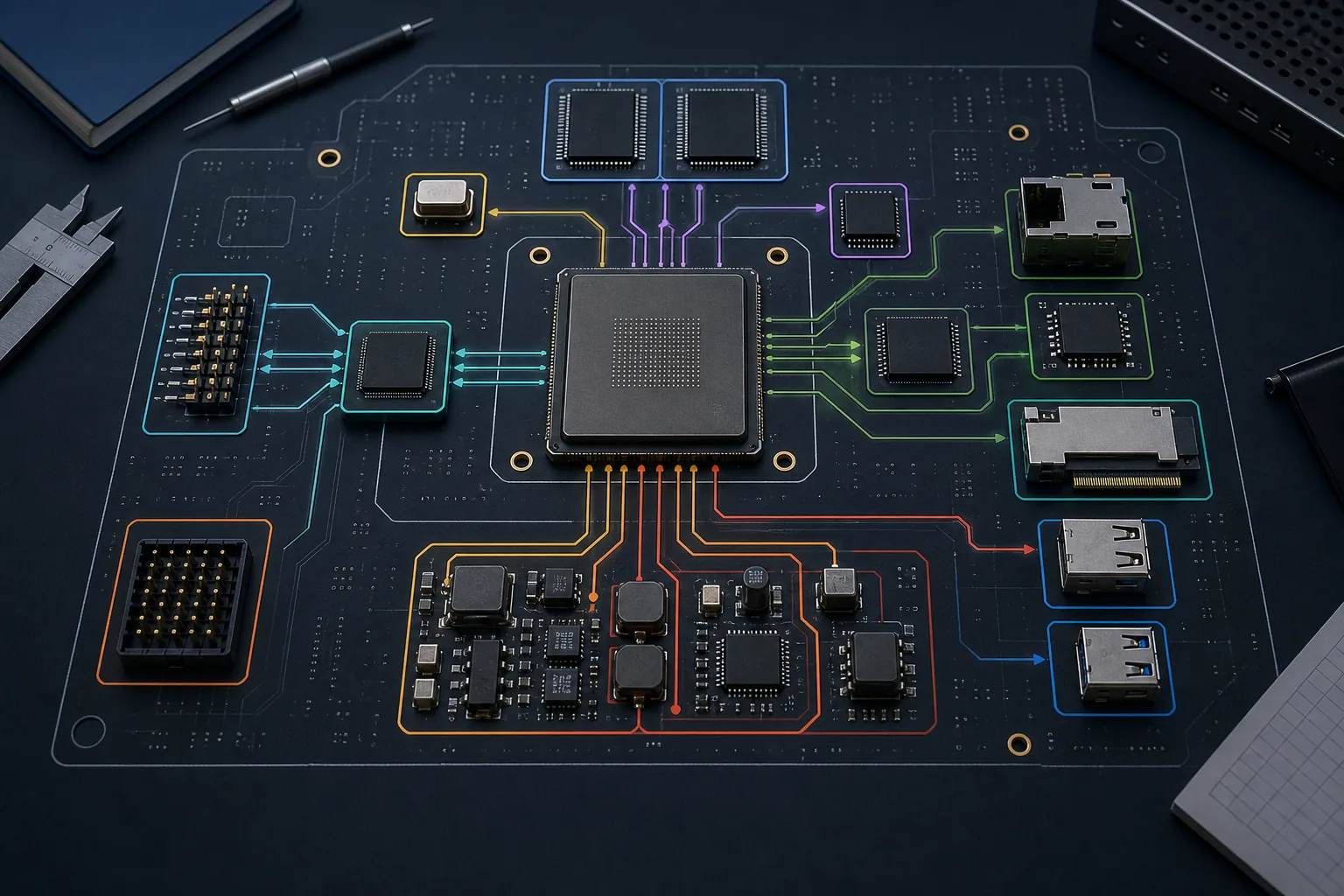

Architecture planning exposes electrical and physical dependencies before they become layout constraints.

2. Select the Package, Stackup, and Via Strategy Together

The smallest device package is not always the lowest-risk choice. Fine-pitch BGAs may require microvias, via-in-pad, sequential lamination, or additional routing layers. Those technologies can be appropriate, but they affect fabrication cost, lead time, registration tolerance, and supplier selection.

Before detailed layout, perform a preliminary BGA escape study using realistic pad sizes, solder mask clearances, drill rules, annular rings, and copper-to-copper spacing. Coordinate the result with the PCB fabricator rather than relying only on generic CAD defaults.

The stackup should provide:

• Continuous reference planes adjacent to critical signal layers
• Predictable impedance geometry for single-ended and differential traces
• Short paths between power and ground for effective high-frequency decoupling
• Sufficient routing channels for BGA escape and memory interfaces
• Balanced copper construction that supports manufacturability
• Materials appropriate for the interface speed, loss budget, and operating environment

Choose layer transitions deliberately. When a high-speed signal changes reference plane, its return current needs a nearby path through a stitching via or suitable decoupling structure. Uncontrolled return-path discontinuities can create common-mode noise, crosstalk, and electromagnetic emissions even when trace lengths appear correct.

3. Engineer the Power Tree and Sequencing for Real Loads

FPGA and processor power systems commonly include core, auxiliary, I/O, transceiver, memory, and analog rails. Each rail has different voltage accuracy, current demand, noise sensitivity, and startup behavior.

Build a rail-by-rail power budget using realistic operating modes, not only typical current figures. Include regulator efficiency, transient demand, startup inrush, thermal derating, and margin for future firmware or logic changes. Verify that the source, regulator, inductors, capacitors, copper, vias, and connectors can all support the same current path.

Sequencing requirements deserve equal attention. Some devices specify relative rail order, monotonic ramp behavior, reset timing, or limits on partially powered I/O. A dedicated sequencer, supervisor, power-good chain, or controlled enable scheme may be needed. Provide ways to observe important rails and reset states without attaching probes to fragile component pins.

The power distribution network should be reviewed across frequency. Bulk capacitors support slower load changes, while local high-frequency decoupling requires low-inductance placement and connections. Capacitor value alone does not define performance; package size, mounting geometry, via inductance, plane spacing, and the combined impedance profile matter.

4. Plan DDR and High-Speed Interfaces Around Signal Margin

DDR routing is not simply a length-matching exercise. The correct topology and constraints depend on the memory generation, controller, number of devices, data width, placement, stackup, and controller recommendations. Data groups, strobes, clocks, command/address nets, and control signals may each require different matching rules.

Place memory close to the controller or FPGA, keep byte lanes compact, preserve clean reference paths, and avoid unnecessary layer changes. Define constraints from the electrical timing budget rather than applying one arbitrary tolerance to every net. Account for package delay when the device vendor supplies it.

For PCIe, USB, Ethernet, LVDS, MIPI, and SerDes links, control the entire channel—not just the visible differential traces. Consider connector models, AC-coupling capacitors, vias, stubs, breakout geometry, reference-plane transitions, and any cable or backplane beyond the PCB. Maintain pair symmetry through bends and transitions, but do not add excessive serpentine routing merely to make a length report look perfect.

Clocks require similar discipline. Keep noisy switching nodes away from oscillators and clock paths, provide clean power where required, and minimize unnecessary stubs. The clock architecture should support both normal operation and practical measurement during validation.

5. Use SI/PI Analysis Where It Changes Decisions

Simulation is most valuable when it answers a specific engineering question. Pre-layout analysis can help select a stackup, estimate loss, compare memory topology options, or set routing constraints. Post-layout analysis can then evaluate the implemented geometry, including vias, coupling, plane transitions, and package effects where suitable models are available.

Typical signal-integrity checks include impedance, insertion loss, return loss, crosstalk, reflections, timing margin, and eye opening. Power-integrity work may examine target impedance, anti-resonance peaks, rail droop, current density, and voltage drop.

Simulation does not replace sound layout, and a colorful plot is not evidence by itself. Define pass/fail criteria, document model assumptions, and convert results into actions: adjust the stackup, move a component, change a via structure, improve a return path, revise termination, or modify the decoupling network.

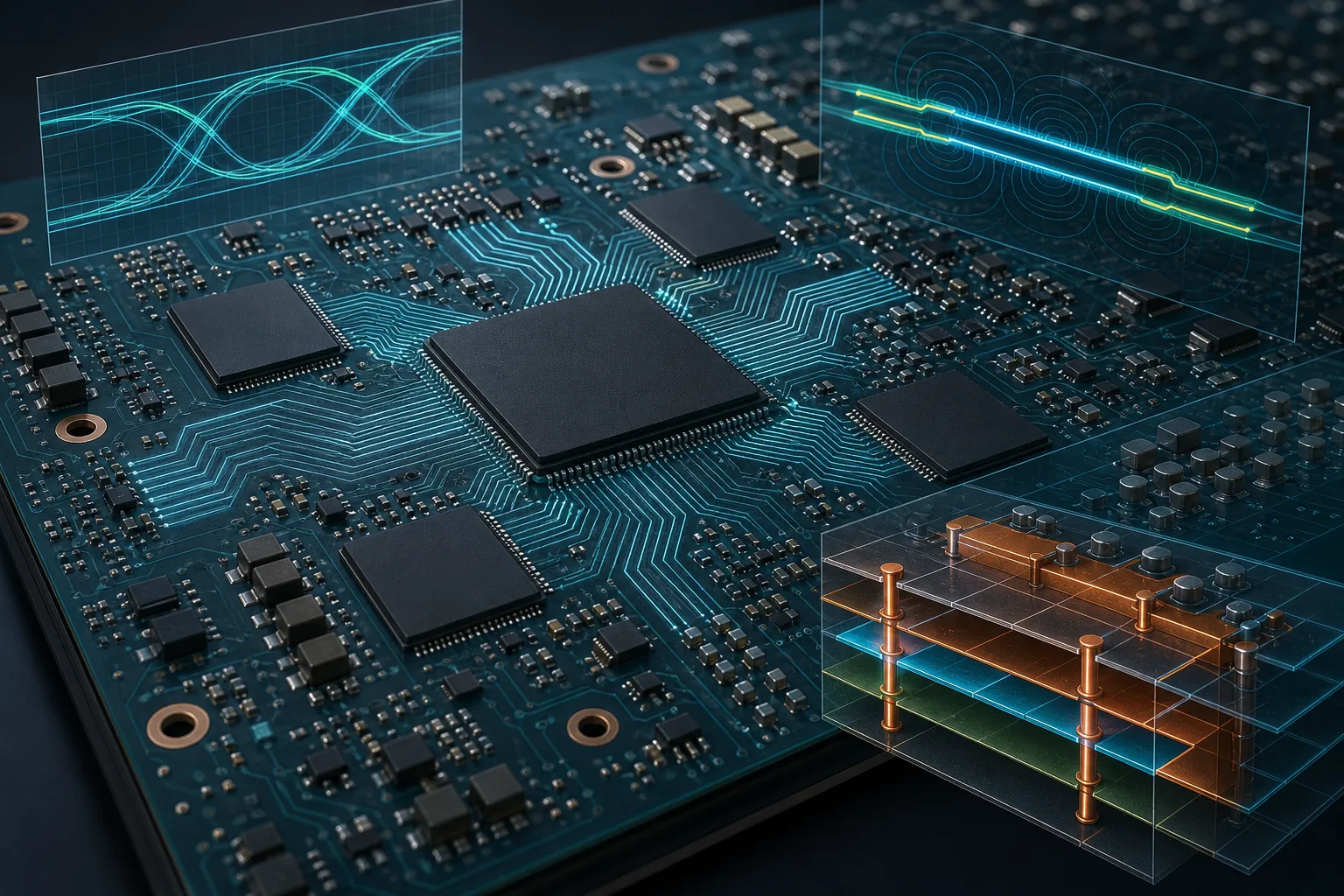

SI/PI analysis is most useful when it guides concrete stackup, routing, via, or decoupling decisions.

6. Design for Bring-Up, Debug, and Recovery

A board that is electrically correct can still be difficult to validate if essential signals are inaccessible. Plan bring-up access while placement is still flexible.

At minimum, consider test points or connectors for primary rails, power-good outputs, reset, key clocks, boot-mode pins, configuration signals, UART, and JTAG. Include current-measurement options where useful. Make test points identifiable and reachable after assembly, and avoid placing them under shields or mechanical structures unless a fixture is planned.

Recovery paths are especially important for embedded products. A corrupted boot image, incorrect pin assignment, or configuration failure should not make the hardware unusable. Provide a documented method to force a safe boot mode, reprogram nonvolatile memory, hold the processor in reset, or configure the FPGA through an independent interface.

Separate the initial power-up procedure into controlled stages. Check for shorts before enabling rails, verify sequencing and current consumption, confirm clocks and resets, then establish debug communication before exercising high-speed interfaces. This sequence makes faults easier to isolate and reduces the chance of damaging prototype hardware.

7. Make DFM and Assembly Review Part of Engineering

Design for manufacturability should happen before release, not after Gerbers are complete. The review must use the chosen fabricator’s actual capabilities for material, layer construction, controlled impedance, drilling, microvias, via filling, copper thickness, solder mask, and surface finish.

Assembly review should cover component orientation, courtyard spacing, thermal-pad construction, paste apertures, BGA inspection strategy, rework access, fiducials, panelization, and component availability. Parts placed too close to connectors, board edges, tall components, or heat sinks may create assembly and mechanical problems even when the electrical clearance check passes.

Also review lifecycle and sourcing risk. An ideal component that cannot be procured consistently may delay prototypes or force an unplanned redesign. Align the BOM with approved alternates and verify that substitutions do not change pinout, power behavior, memory timing, oscillator performance, or signal integrity.

8. Release Complete, Controlled Production Data

Production release is more than exporting Gerbers. A clean package normally includes source files, fabrication data, drill files, stackup and impedance notes, fabrication drawing, assembly drawings, BOM, centroid data, approved component substitutions, programming requirements, and relevant engineering records.

Run independent checks on the exported manufacturing data. Confirm that the output matches the intended revision, all layers are present, drill pairs are correct, polarity is interpreted properly, and fabrication notes agree with the data. Archive the exact released package so future changes remain traceable.

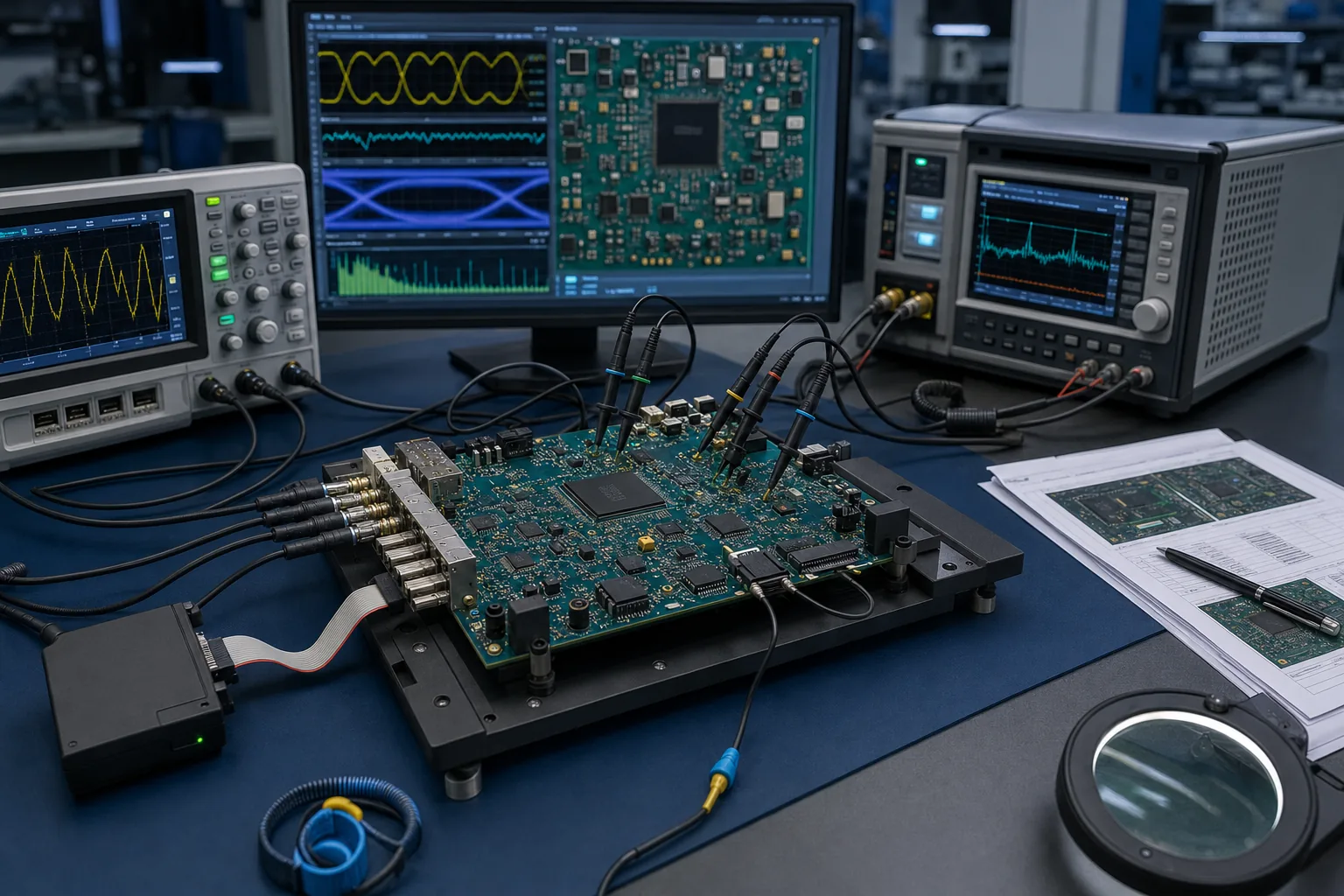

Accessible measurement points and a controlled validation plan make first-board bring-up faster and more informative.

A Practical Embedded & FPGA PCB Workflow

A reliable development flow can be summarized in five controlled stages:

1. Requirements and feasibility: Define performance, interfaces, environment, mechanical limits, compliance needs, cost, and production volume.
2. Architecture and design rules: Select devices, map I/O, create the power and clock architecture, plan the stackup, and prove BGA escape feasibility.
3. Schematic and implementation: Capture the design, place by functional priority, route to interface-specific constraints, and maintain continuous return paths.
4. Verification and DFM: Complete peer review, electrical rule checks, SI/PI work where justified, thermal review, fabrication review, and assembly review.
5. Documentation and release: Export, independently inspect, revision-control, and archive the full production package and bring-up plan.

The central principle is simple: do not postpone system-level decisions until layout. When architecture, stackup, power, memory, high-speed routing, test access, and manufacturing are developed together, the result is easier to build, easier to debug, and more likely to reach production without avoidable board spins.
