Key takeaways
- Choose HDI when fine-pitch packages, limited board area or routing density make conventional through-via construction impractical.
- Confirm the stackup and microvia rules with the selected fabricator before detailed routing begins.
- Use via-in-pad, stacked or staggered microvias only where they create measurable routing or performance value.
- Treat signal integrity, power integrity, thermal behavior and manufacturability as early architecture decisions.
What is HDI PCB design?
An HDI PCB uses finer conductor geometry and higher interconnect density than a conventional multilayer board. Typical features include laser-drilled microvias, sequential build-up layers, blind and buried vias, via-in-pad technology, fine-pitch BGA escape routing and thinner dielectric layers.
The goal is not simply to make a board smaller. A well-engineered HDI structure can shorten signal paths, reduce via stubs, improve reference-plane continuity and support compact component packages. These benefits are only achieved when the layout and fabrication process are developed together.
When should you use HDI instead of a conventional multilayer PCB?
HDI becomes valuable when one or more product constraints cannot be solved efficiently with mechanically drilled through vias. Common triggers include:
- Fine-pitch BGAs, CSPs or components with limited escape channels
- A fixed board outline with a high connection count
- High-speed interfaces that benefit from shorter transitions and smaller via structures
- Strict weight, thickness or enclosure limits
- Dense embedded, medical, automotive, telecommunications or IoT products
HDI is not automatically the best choice for every compact PCB. Sequential lamination, filled vias and tighter registration increase fabrication complexity. The correct decision balances density, electrical performance, reliability, yield and total product cost.
Core building blocks of an HDI PCB
Microvia architecture
Microvias are normally laser drilled and connect adjacent layers in a sequential build-up structure. Their smaller diameter creates more routing space around fine-pitch pads and reduces the parasitic effect of a large through via. The design must define microvia diameter, capture-pad size, dielectric thickness, copper fill and whether vias are staggered or stacked.
Via-in-pad, filled and capped structures

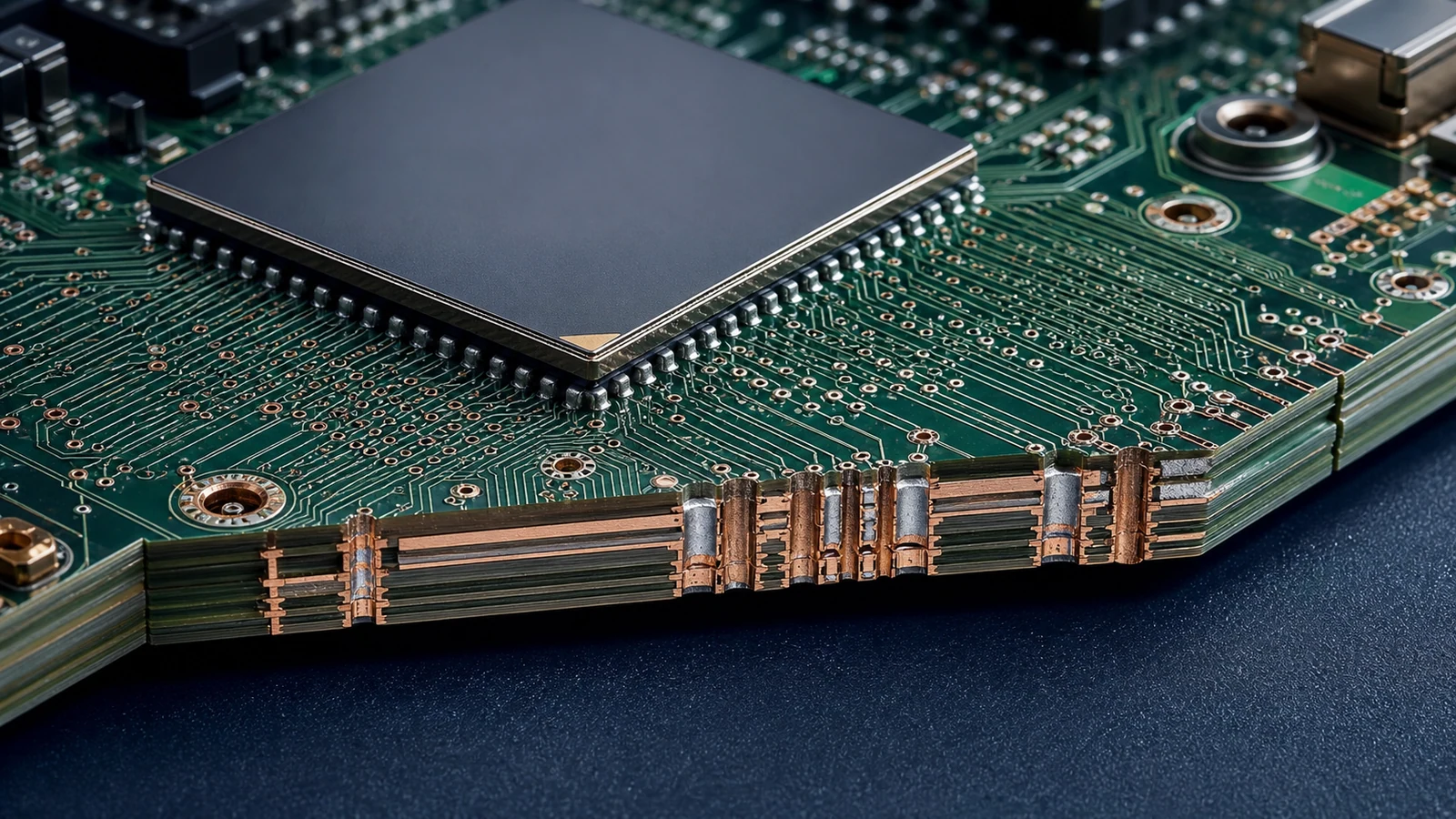

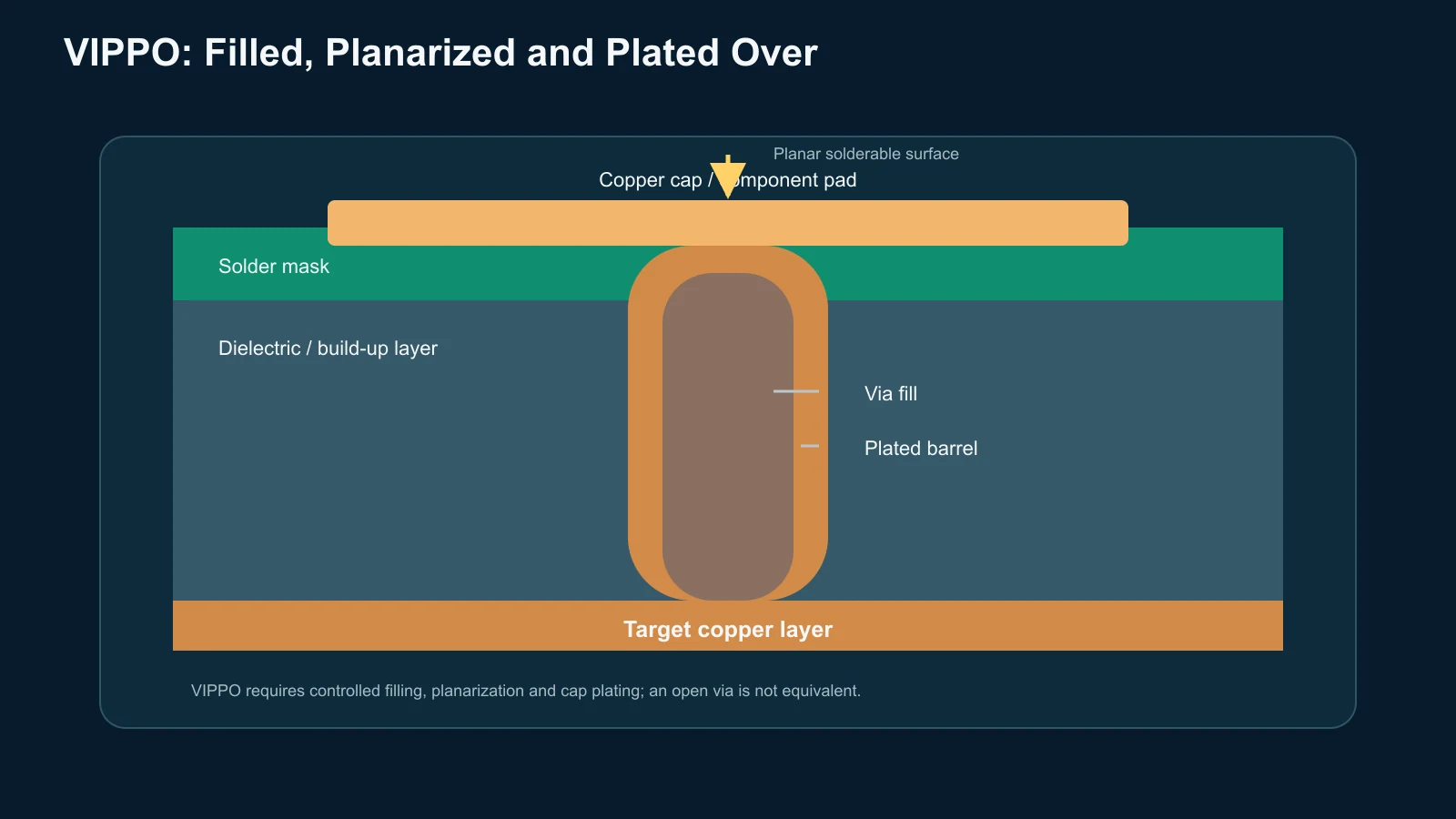

Via-in-pad places the interconnect directly inside a component pad. This is useful for dense BGA escape and can also improve thermal or ground connections. The via must be filled and planarized so solder does not drain into the hole. Pad size, fill material and copper cap requirements should be agreed with the PCB manufacturer.
Sequential lamination
HDI boards are built through one or more additional lamination cycles. Each build-up cycle adds cost and process risk, so the structure should use the fewest sequential steps that satisfy routing and reliability requirements. This is why early coordination with HDI PCB manufacturing is essential.
HDI stackup structures explained

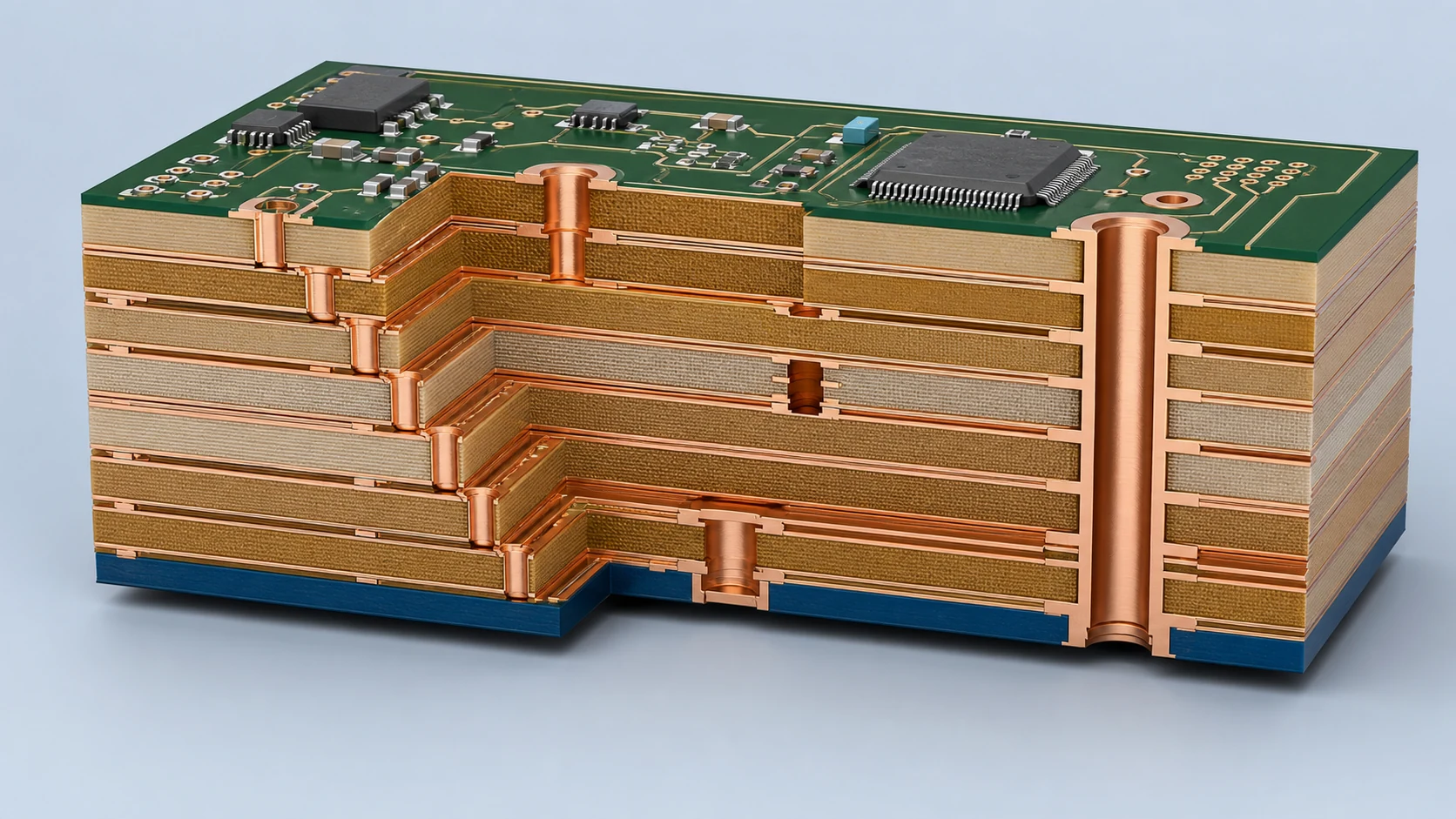

HDI stackups are commonly described using build-up notation. In a 1+N+1 structure, one HDI layer is added to each side of a conventional multilayer core. A 2+N+2 design uses two build-up layers on each side. Any-layer HDI allows microvia connections through multiple build-up layers but requires more advanced fabrication control.
| Structure | Best suited for | Key consideration |
|---|---|---|
| 1+N+1 | Moderate density and fine-pitch BGA escape | Practical balance of density, cost and fabrication risk |
| 2+N+2 | Higher routing density and complex package fan-out | Additional lamination cycles and tighter process control |
| Stacked microvias | Direct vertical layer transitions in restricted areas | Copper fill quality and reliability under thermal cycling |
| Staggered microvias | High reliability with more available routing area | Requires lateral space between adjacent via levels |
| Any-layer HDI | Very high density and advanced mobile-class products | Highest fabrication complexity and supplier dependency |
The stackup must also define finished board thickness, copper weights, dielectric materials, plane placement and controlled-impedance geometry. Review the proposed structure with the fabricator before freezing component placement.
A practical HDI PCB design workflow
1. Review requirements and component geometry
Start with the schematic, BOM, mechanical outline, critical component datasheets, connector positions and interface requirements. Record fine-pitch package dimensions, current demand, impedance targets, maximum thickness and any approved material system.
2. Define the stackup and fabrication rules
Work with the fabricator to define microvia diameter, pad size, aspect ratio, dielectric thickness, minimum line width and spacing, copper fill and registration capability. These rules determine whether the proposed fan-out is physically achievable.
3. Plan placement and BGA escape
Place key processors, memories, power devices and connectors according to signal flow. Reserve routing channels and decide where via-in-pad or microvias are genuinely required. Decoupling capacitors, clocks and high-current loops should be placed before general components.
4. Route by electrical priority
Route differential pairs, clocks, memory buses and other constraint-driven signals first. Maintain continuous return paths, control layer transitions and minimize unnecessary via count. Then complete power distribution and general routing.
5. Review SI, PI, DFM and assembly access
Validate impedance, timing, return-current continuity and power distribution. Check solder-mask webs, annular rings, copper-to-edge clearance, assembly access, test points and thermal behavior. A disciplined PCB design process prevents late changes after manufacturing data is generated.
Fine-pitch BGA fan-out and dense routing

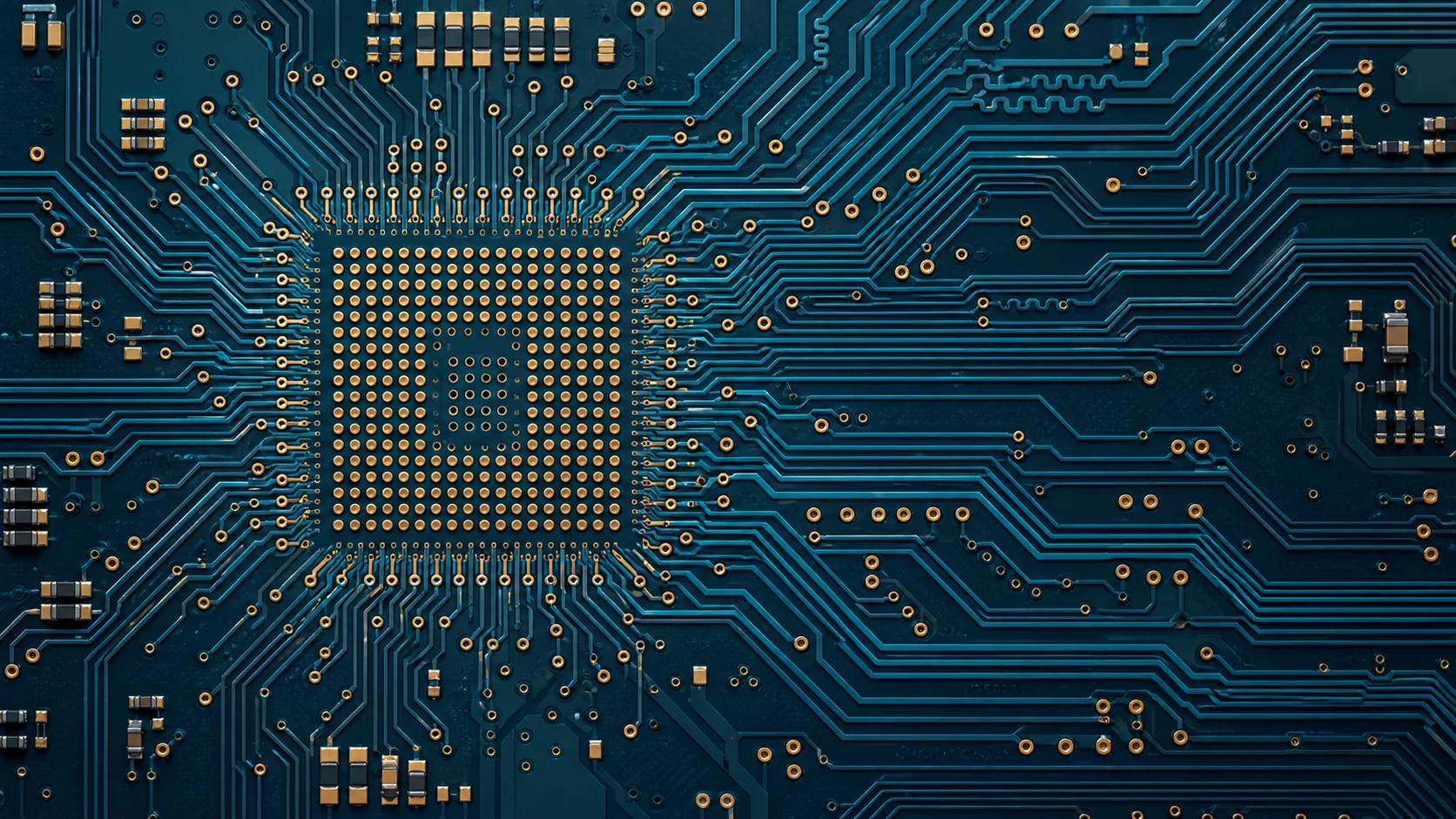

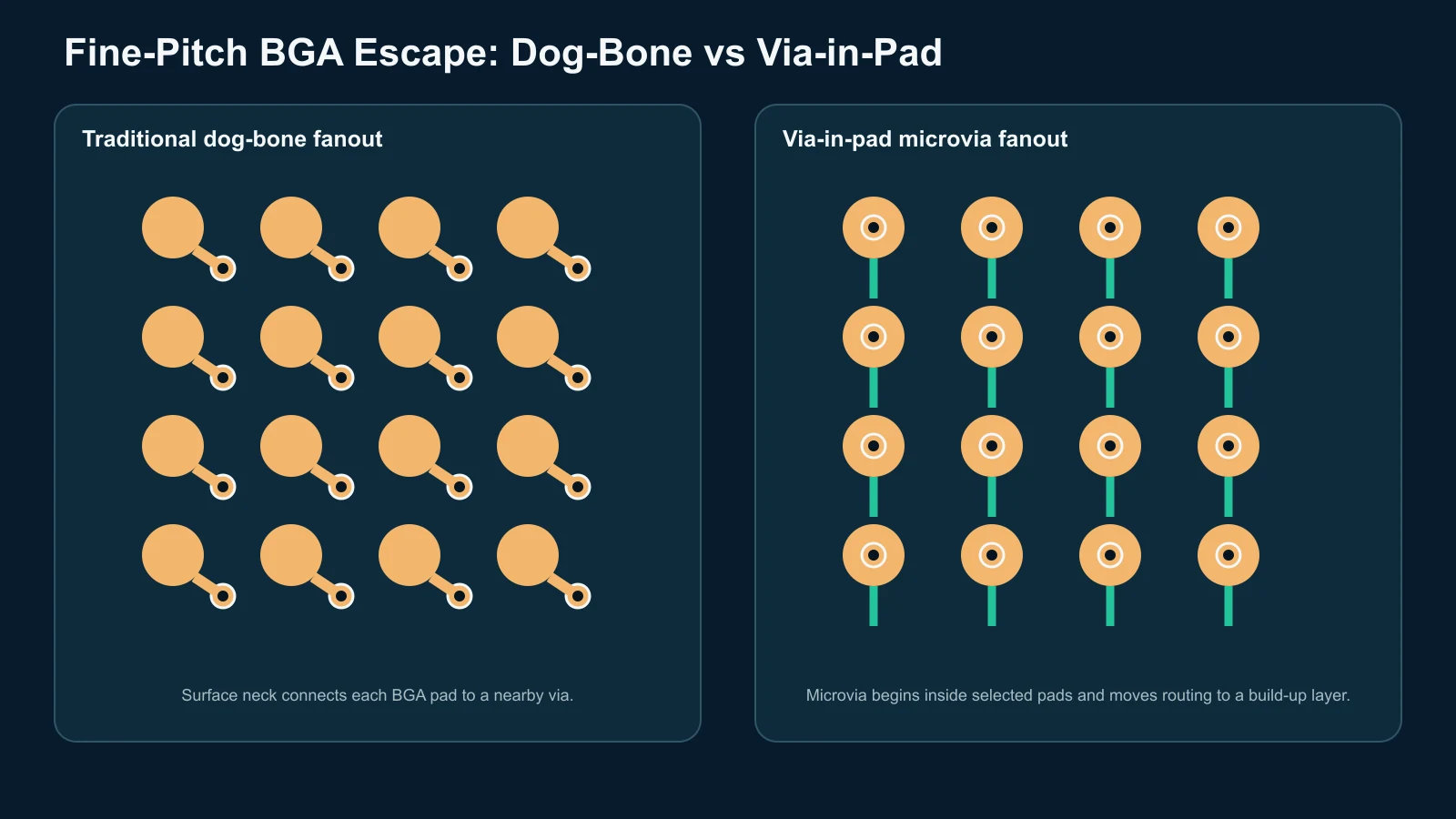

BGA escape strategy often determines whether an HDI layout succeeds. Begin by mapping ball pitch, pad diameter, available routing channels and the number of signal rows that must escape. A dog-bone fan-out may work for the outer rows, while inner rows often require via-in-pad microvias.
Avoid selecting a via structure solely to make routing easier. The escape pattern should preserve reference-plane continuity, minimize stubs and respect the fabricator’s capture-pad and registration requirements. For high-speed devices, layer transitions should be paired with nearby ground connections to support return-current flow.
Signal integrity and power integrity in HDI layouts
Reference-plane continuity
Every high-speed trace needs a predictable return path. Avoid routing over plane splits, voids or poorly connected copper islands. When a signal changes reference planes, provide a nearby stitching path so return current does not take a long detour.
Controlled impedance
Thin HDI dielectrics can support narrow controlled-impedance traces, but the finished geometry must be confirmed by the manufacturer. Include target impedance, tolerance, reference layer and coupon requirements in the fabrication documentation.
Power distribution
Compact placement can increase current density and thermal concentration. Use low-inductance decoupling paths, sufficient copper for high-current rails, suitable plane pairs and enough ground connections around high-speed or RF transitions. For mixed high-frequency systems, coordinate these decisions with the RF PCB design strategy.
Design for manufacturability and reliability
HDI DFM is not a final checklist added after routing. It begins with the first stackup discussion. Important questions include:
- Can the supplier reliably produce the selected microvia diameter and dielectric thickness?
- Are stacked vias filled and capped using an approved process?
- Does the design meet annular-ring and registration limits across all build-up layers?
- Are copper balance, resin flow and lamination symmetry controlled?
- Can solder mask, surface finish and assembly processes support the fine-pitch geometry?
- Are thermal-cycling and product-reliability targets reflected in the via architecture?
For production programs, request a formal stackup review and confirm inspection, test and coupon requirements before release. Early supplier engagement reduces the risk of redesign, yield loss and schedule delay.
HDI manufacturing deliverables
A complete release package should make the intended structure unambiguous. Include:
- Gerber or ODB++ fabrication data
- NC drill and laser-drill files separated by via type
- Approved stackup and controlled-impedance table
- Fabrication drawing with microvia, via-fill and surface-finish notes
- IPC netlist and electrical-test requirements
- BOM, centroid data and assembly drawings for PCBA
Before sending the package, inspect the exported data in an independent viewer and verify that all files share the same revision. Excel Circuit can support the complete route from engineering review through HDI fabrication and assembly.
Common HDI PCB applications
HDI construction is widely used in telecommunications equipment, automotive control and sensing platforms, medical electronics, aerospace systems, industrial edge computing, wearables and compact IoT devices. The common requirement is not simply small size—it is a high connection count combined with strict electrical, mechanical or reliability constraints.
Frequently asked questions about HDI PCB design
When should I consider HDI instead of a conventional multilayer PCB?
Consider HDI when fine-pitch packages, limited board area, high connection density or electrical-performance requirements make conventional through-via routing impractical. The final choice should compare density benefits with fabrication cost and reliability targets.
What is the difference between stacked and staggered microvias?
Stacked microvias align vertically through multiple build-up layers and save routing area, but they require reliable via filling and tighter process control. Staggered microvias are offset between layers, often improving reliability but using more lateral space.
Is via-in-pad always required for fine-pitch BGAs?
No. Outer BGA rows may use conventional dog-bone fan-out when pitch and pad geometry allow it. Via-in-pad is most valuable where inner rows cannot escape through available routing channels or where direct thermal and ground connections are needed.
How early should the PCB manufacturer review the HDI stackup?
The preferred fabricator should review the stackup before detailed placement and routing. Microvia geometry, dielectric thickness, impedance rules and registration capability directly affect the layout strategy.
What files are needed to start an HDI PCB design?
Provide the approved schematic, BOM, mechanical outline, critical component datasheets, connector and height constraints, interface requirements, impedance targets and any preferred board thickness, layer count or material system.
Make your HDI design production-ready
Share your schematic, mechanical constraints and critical components with our engineering team. We can review stackup, density, signal performance and manufacturability before the design reaches production.
