RF PCB Design: Layout, Materials & Signal Integrity
A practical engineering guide to controlled impedance, low-loss materials, grounding, transitions, simulation, and manufacturable high-frequency layouts.

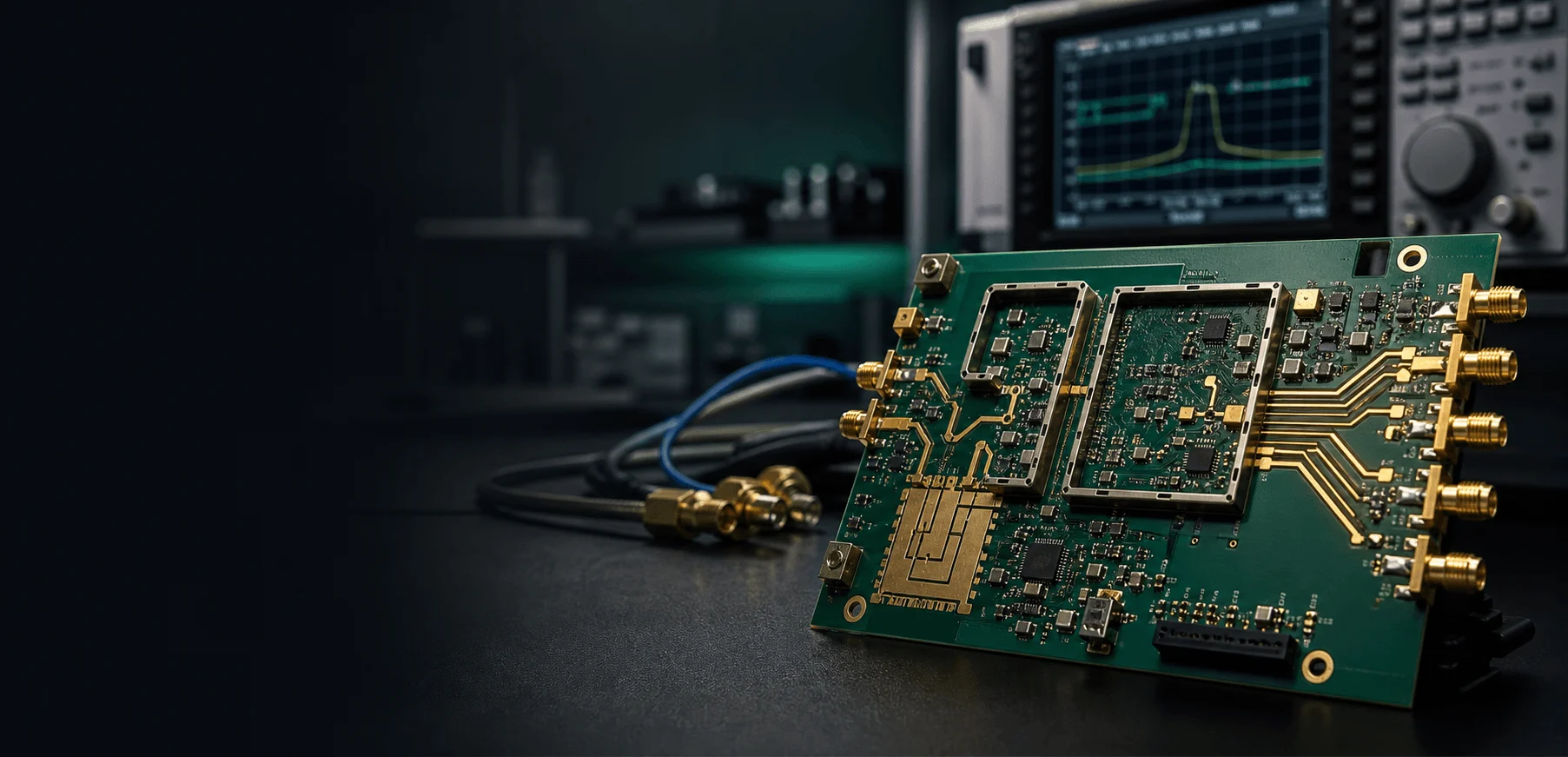

Build RF Boards That Perform as Designed
At RF and microwave frequencies, every trace, via, pad, package, and reference-plane transition influences performance. A reliable board begins with coordinated decisions across schematic design, stackup, materials, layout, simulation, fabrication, and testing.
This guide explains the core engineering principles behind repeatable RF PCB performance—from controlled impedance and return-current paths to connector launches and production tolerances.
RF PCB DESIGNCONTROLLED IMPEDANCESIGNAL INTEGRITY
What Makes RF PCB Design Different?
Small physical details become measurable electrical structures. The design must control loss, impedance, phase, coupling, return current, and manufacturing variation.
Controlled Impedance
Keep transmission-line geometry consistent through traces, vias, connectors, packages, and layer changes.
Low Signal Loss
Balance laminate Dk, dissipation factor, copper roughness, route length, and production cost.
Return-Path Control
Maintain continuous reference planes and short return transitions to minimize radiation and coupling.
Choose Materials and Geometry Together
RF trace width cannot be separated from dielectric thickness, copper profile, solder mask, and the manufacturer’s process. Final impedance geometry should use the actual production stackup—not a generic calculator.
- Rogers, Taconic, Isola, FR-4 and hybrid structures
- Microstrip, stripline and grounded coplanar waveguide
- Stable dielectric thickness and Dk tolerance
- Practical trace widths, gaps and copper weights
Seven Essentials of Reliable RF Layout
Apply these principles from placement through final design review.
Short, Direct RF Paths
Avoid stubs, abrupt width changes, excessive corners, and unnecessary test pads.
Continuous Ground
Never route a critical RF signal across a split or void in its reference plane.
Optimized Transitions
Treat signal vias, anti-pads, return vias, and connector launches as RF structures.
Functional Isolation
Separate sensitive receivers from transmitters, clocks, high-speed digital, and switch-mode power.
Thermal Stability
Control heat in power amplifiers and active RF devices to protect gain, phase, and long-term reliability.
Simulation + Testing
Correlate field-solver and EM results with TDR, VNA, and production coupon data.
Material Selection at a Glance
Select the laminate against the real loss, phase, thermal, cost, and production requirements.
| Factor | Why It Matters | Engineering Consideration |
|---|---|---|
| Dielectric Constant (Dk) | Controls impedance and phase delay | Use design Dk at the operating frequency |
| Dissipation Factor (Df) | Contributes to dielectric loss | Evaluate over route length and bandwidth |
| Copper Roughness | Increases conductor loss | Consider foil profile and skin effect |
| Thermal Stability | Affects performance over temperature | Review TCDk, CTE, Tg and heat flow |
| Fabrication Compatibility | Determines yield and repeatability | Confirm bonding, drilling and plating process |
From Requirements to Verified Hardware
Define
Frequency, power, loss, phase and mechanical targets.
Plan
Material, stackup, impedance and placement strategy.
Design
RF layout, grounding, transitions and thermal paths.
Verify
Simulation, DRC, DFM and tolerance analysis.
Test
Coupons, TDR, VNA and measured correlation.
Make RF Performance Repeatable in Production
Early cooperation with the fabricator helps translate simulated geometry into achievable copper, dielectric, drilling, registration, and impedance tolerances.
Release Checklist
- Approved material and stackup
- Fabricator-confirmed impedance geometry
- Return vias beside layer transitions
- Reviewed connector launches
- Defined coupon and test requirements
- Consistent fabrication data and notes
Planning an RF or Microwave PCB?
Send your schematic, frequency range, mechanical constraints, and performance targets for an engineering review.
Frequently Asked Questions
Can FR-4 be used for RF PCB design?
Yes, for some lower-frequency, short-route, or cost-sensitive designs. The decision should be based on loss budget, Dk consistency, route length, bandwidth, temperature range, and production tolerance—not frequency alone.
What is the difference between microstrip and stripline?
Microstrip is routed on an outer layer above a reference plane; stripline is embedded between reference planes. Microstrip is easier to access, while stripline provides stronger field confinement and shielding.
Why are ground vias placed beside RF traces?
Ground vias provide short return paths, connect reference planes, contain fields in grounded coplanar structures, and reduce unwanted radiation and coupling.
When is back drilling required?
Back drilling is considered when an unused through-via stub is long enough to create significant resonance or insertion loss within the operating band.
What files are needed for an RF PCB design review?
Useful inputs include schematics, stackup or material requirements, operating frequency and bandwidth, impedance targets, mechanical files, component datasheets, loss targets, and any simulation or test criteria.
